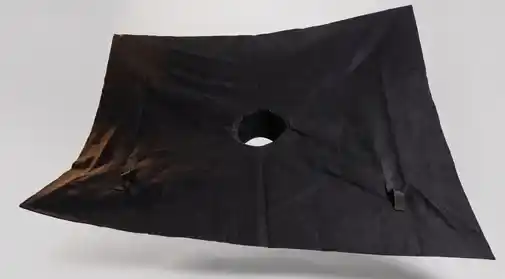

Drain filters also called catch basin filters or catch basin inserts, sit inside storm drains and capture oil, silt, sediment and debris from runoff before it enters the drainage system. They are used on construction sites, industrial facilities, parking areas and warehouses to reduce pollution and support stormwater compliance.
The filter is made from geotextile fabric that traps hydrocarbons and suspended solids while allowing water to pass through. Overflow ports help prevent flooding during heavy rain. Installation is simple — lift the grate, place the filter, and replace the grate. No tools are required. For complete site protection, catch basin filters work alongside inflatable pipe plugs, oil absorbent pads and spill containment berms.
| Dimensions (inches / mm) | Oil Capacity | Sediment Capacity | Weight (kg) |
|---|---|---|---|
| 48 × 36 × 18 (1219 × 914 × 457 mm) | 3.5 L | 18 kg | 1 (.5) |
| 48 × 36 × 18 (1219 × 914 × 457 mm) | 5 L | 18 kg | 2 (.9) |
| 60 × 60 × 18 (1524 × 1524 × 457 mm) | 6 L | 18 kg | 2 (.9) |
| 60 × 60 × 18 (1524 × 1524 × 457 mm) | 8 L | 18 kg | 3 (1.4) |
Drain covers for emergency use — you place them over a drain during a spill to block contamination from entering. Drain filters for ongoing protection — they sit inside the basin permanently and filter oil, silt, and debris from every rain event. Most industrial sites need both: covers near chemical storage for spill emergencies, and filters in all outdoor storm drains for continuous stormwater compliance.
Yes. Enviroguard supplies drain filter inserts for standard and large catch basins. Available in standard sizes (48×36" and 60×60") with oil-only, sediment, and heavy metal configurations.
